LED High Temperature High Bay Lighting

May. 10, 2022


High Temperature Products series


LED High Temperature High Bay Lighting Series

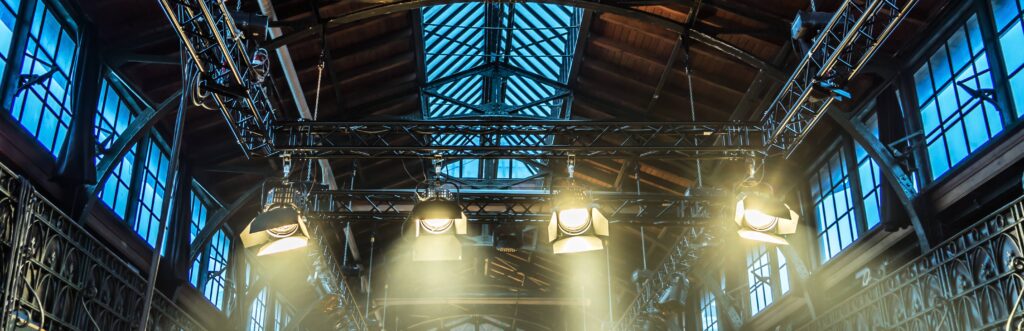

In the lighting industry, you may often hear the terms "high bay" and "low bay" lighting, which generally describes the space and the height of the ceilings involved. A high bay luminaire is a lighting fixture that is designed for industrial locations high above the floor or work plane. High bay lighting applications may include lighting systems designed for use in structures with high ceilings, or "high bays" which include warehouses, manufacturing facilities, large retail stores, athletic facilities, or the like where the ceilings can be 30 or more feet high.


LED high bay luminaires offer many advantages over traditional HID high bays, these advantages include lower energy consumption, higher outputs at higher drive currents, longer lifetime, improved robustness, smaller size, faster switching, and excellent durability and reliability.


With the ability to operate at 70°C 24/7, LEDRHYTHM Lighting’s High&Low bay lighting solution built to meet the demands of high ambient temperature environments - ‘Bringing Light where People don’t go!’

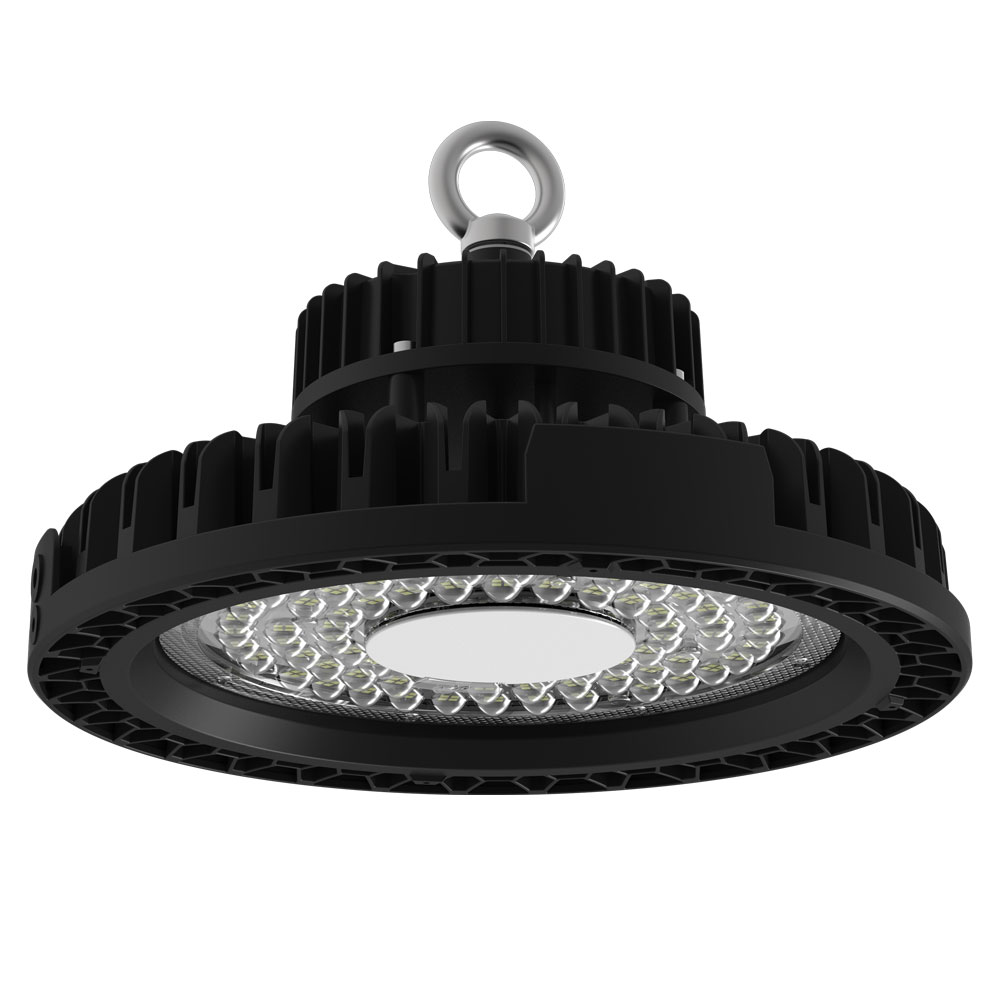

There are limited lighting products on the market that can operate continuously in high-temperature environments, such as pulp and paper mills, foundries, and glass factories. Excessive temperatures will decrease the lights’ performance and increase their maintenance costs. The Diamond II-PRo and Venus II_Pro Range of high-temperature LEDs is specifically designed for these extreme conditions, providing high lighting levels and long life.


Designed to perform and built to last, LEDRHYTHM Lighting’s Diamond II-PRO & Venus II-PRo range are the lighting solution for:

• Glass Factories

• Foundries

• Power Plants

• Hot Mills

• Blast Furnaces

• Steel Manufacturing

• Chemical Plants

High Temperature Products series

• Despite the extreme temperatures in these facilities, the Leslie solution provides the special lighting they demand.

KEY FEATURES

• Plug & Play-installation by disconnectable Plug

• Suitable for repeated switching on and off

Very high resistance to vibrations

Resistant to aggressive chemical environments

• Long maintenance intervals

• Durable and maintainable luminaire

•Warranty : 5 years 24/7 use at max temp

•Operating temperature: -20°C +70°C

•Imperviousness: IP66, IP68 and IP69K

•Resistance to IK shocks: IK08(Diamond II-PRO)  IK10(Venus II-Pro)

•Supply voltage: 220-240V 50/60Hz

•Power consumption: 15~40 W(Venus II-Pro for Low Bay)•Power consumption: 80~400 W(Diamond II-Pro for High Bay)

•Resistance to overload: 380 V AC, 48 h (Supports voltage spikes < 4 kV)

•T°C with incandescent wires: non-flammable

•Vibration resistance: Meets the severe application requirements of the standard EN 60598-1 (tested according to CEI 60068-2-6)



High Temperature Products series



High Temperature Products series
